12/14/16/17/21mm Gasolines Diesel Engine Water Temperature Sensor 120℃ Alarm Generator Part for - Automotive LED Light

12/14/16/17/21mm Gasoline Diesel Engine Water Temperature Sensor 120℃ Alarm Generator Part for Car Truck Boat 1/8NPT 3/8NPT

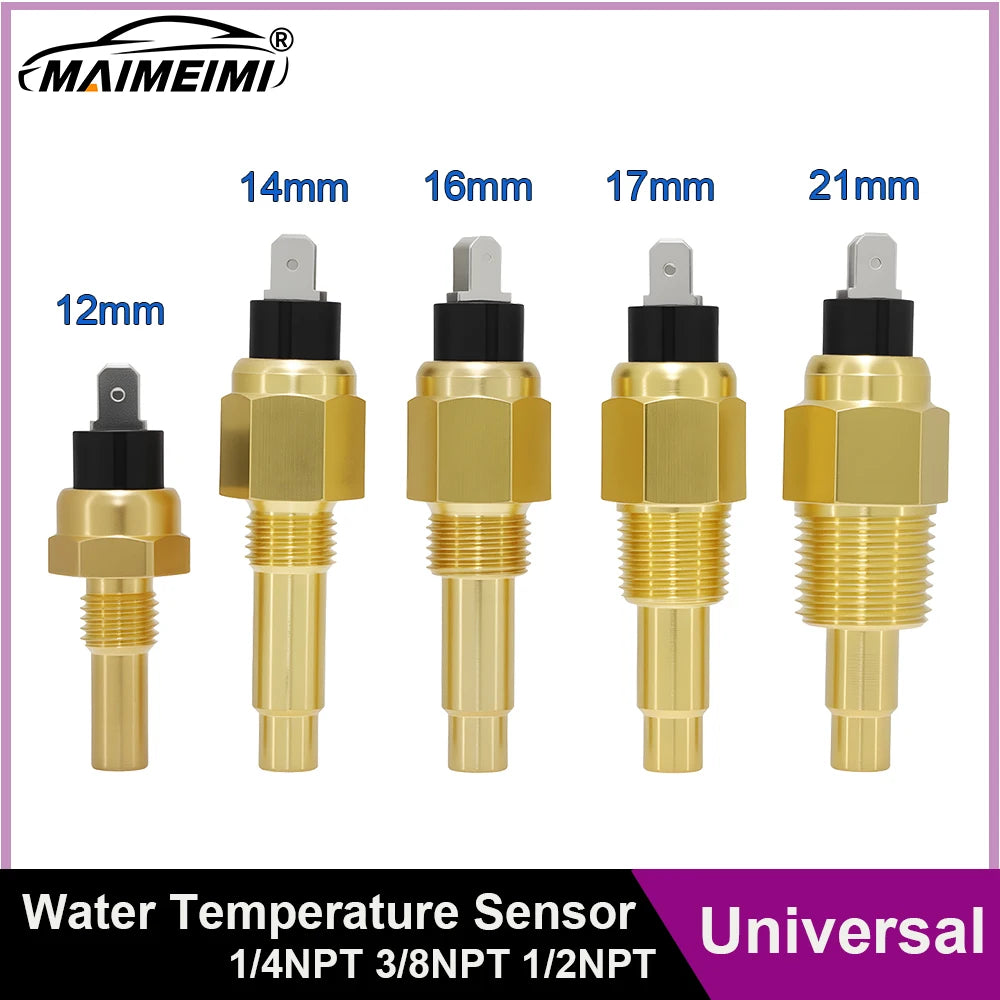

Size:

14MM=1/4NPT (14X78MM)

17MM=3/8NPT(17X78MM)

21MM=1/2NPT(21X78MM)

Working principle::

When the water temperature is higher, the resistance value is lower. The lower the water temperature, the greater the resistance value.

Working range: 0-120 degrees.

Alarm temperature: 98 ± 2 degrees

When the water temperature reaches the alarm temperature and the alarm switch is closed, the alarm light will turn on.

When the water temperature decreases and the alarm switch is turned off, the alarm light will be turned off.

When the alarm temperature is reached, the response time is approximately 1 second.

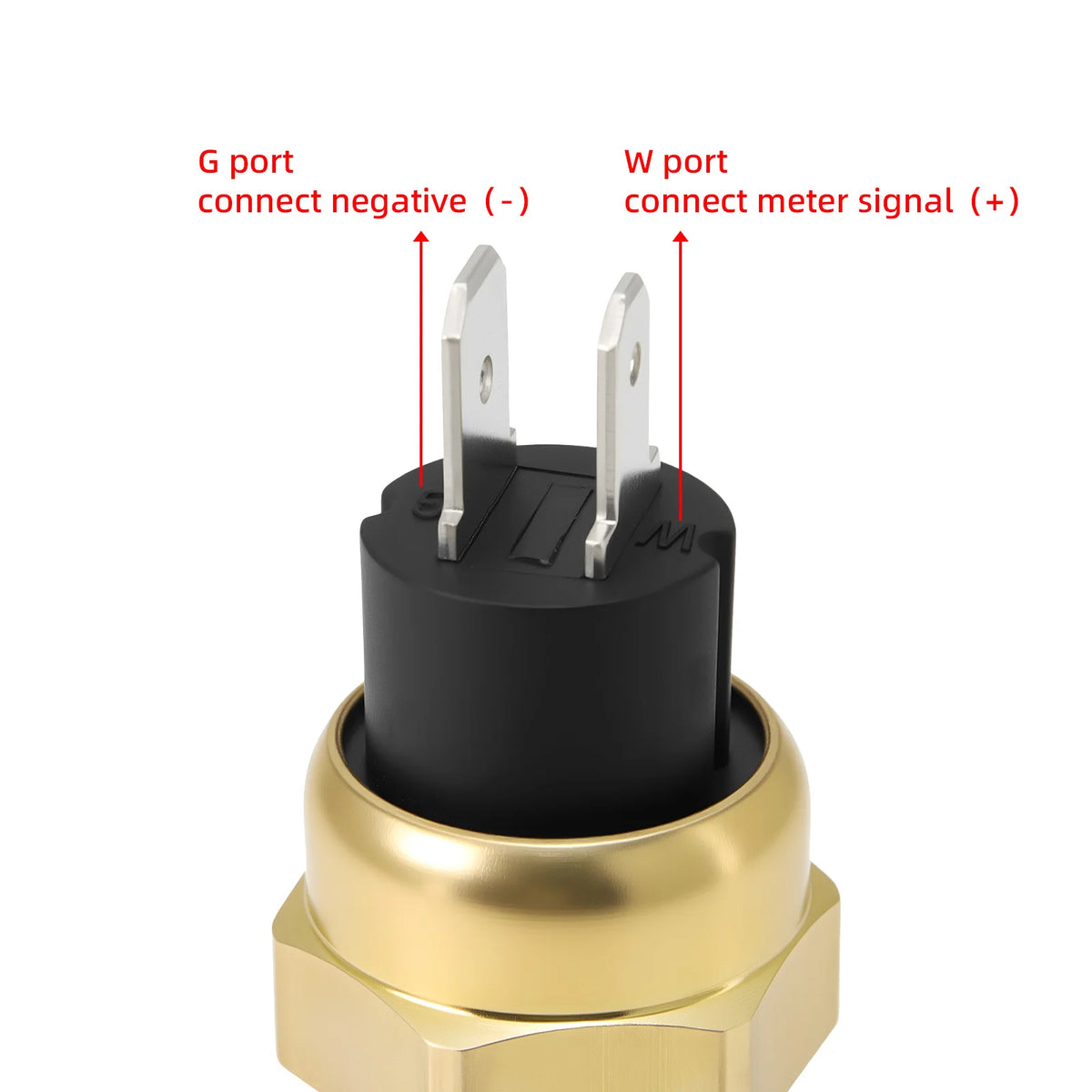

The water temperature sensor has 2 wires, one is connected to the water temperature meter, and the water temperature parameter is displayed.

One connection alarm switch

Package:

1x Water Temperature Sensor
