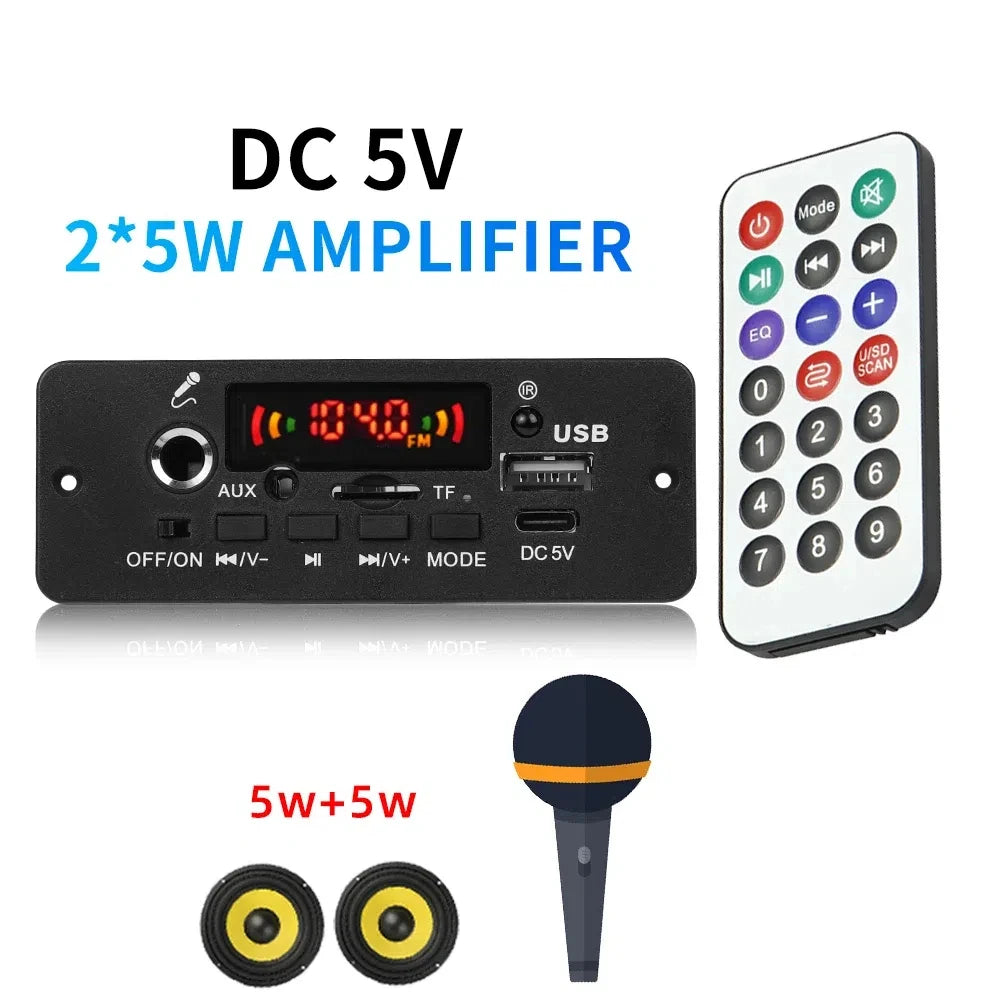

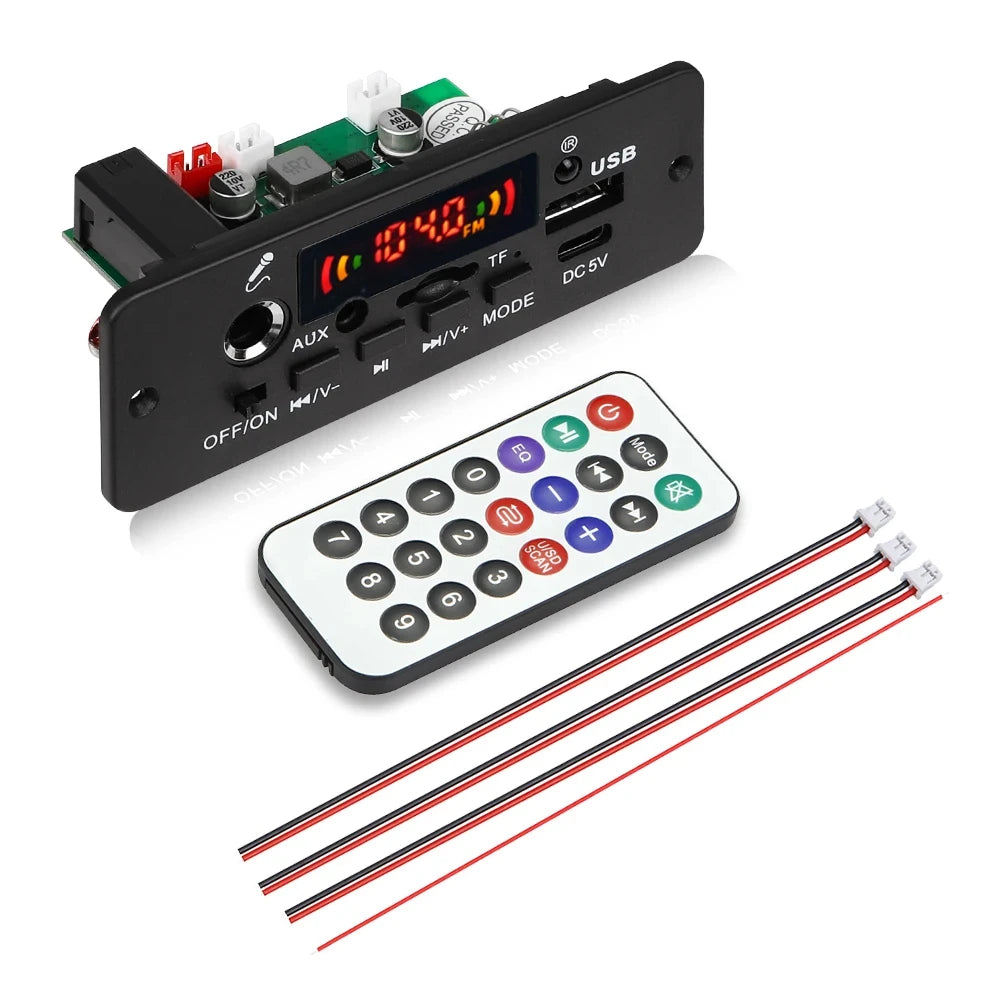

10W Digital Amplifier MP3 Decoder Board DC 5V Bluetooth 5.0 FM Support Microphone Car MP3 Player - Automotive LED Light

Model: JQ-D129BT

Microphone function Bluetooth version 5.0

Power supply voltage: 5 V (range 3.7 V-5 V) and current not less than 2 A.

Power: can connect 2*5W and two 5W speakers at the same time.

Connect the microphone function, Folder switch function

Music format: lossless music format MP3/WMA/WAV/APE/FLAC.

FM radio frequency: 87.5—107.5 MHz.

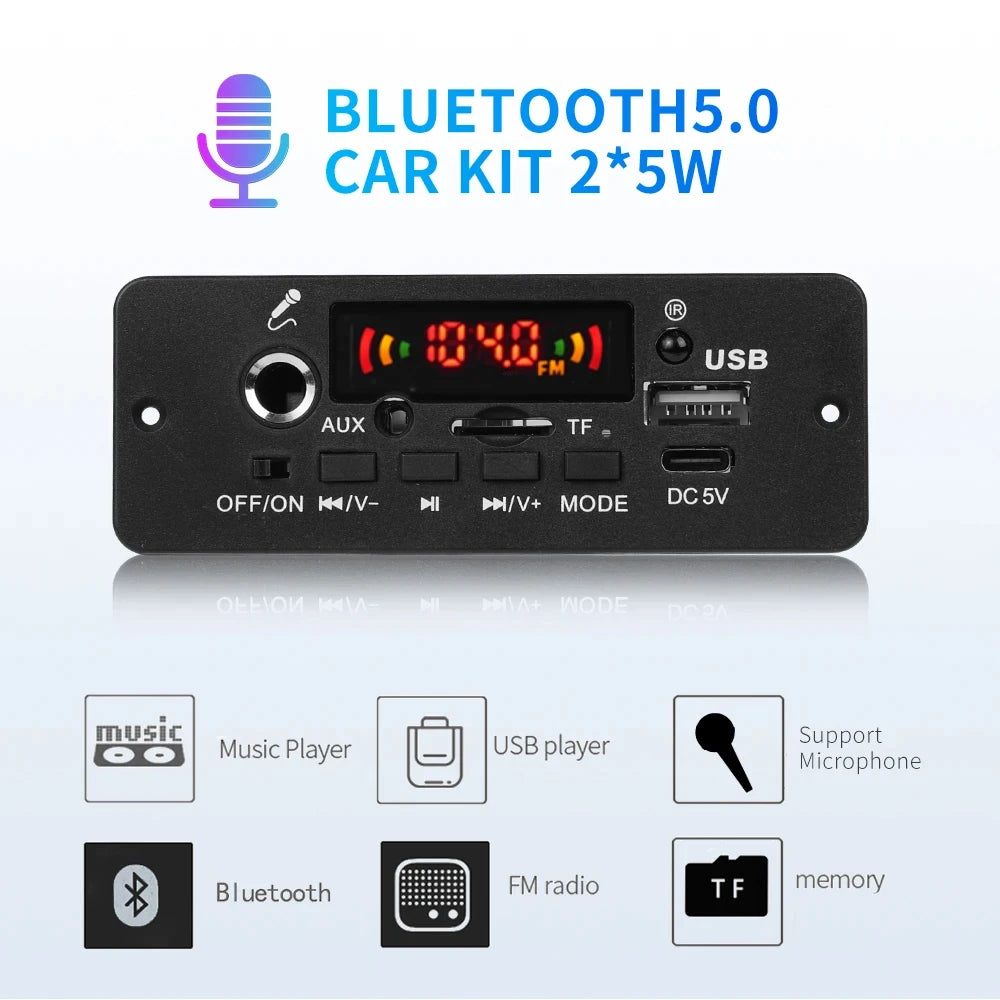

Introduction of support function: compatible with MP3/USB/TF/LINE IN/FM/Bluetooth/remote control/DC 5V.

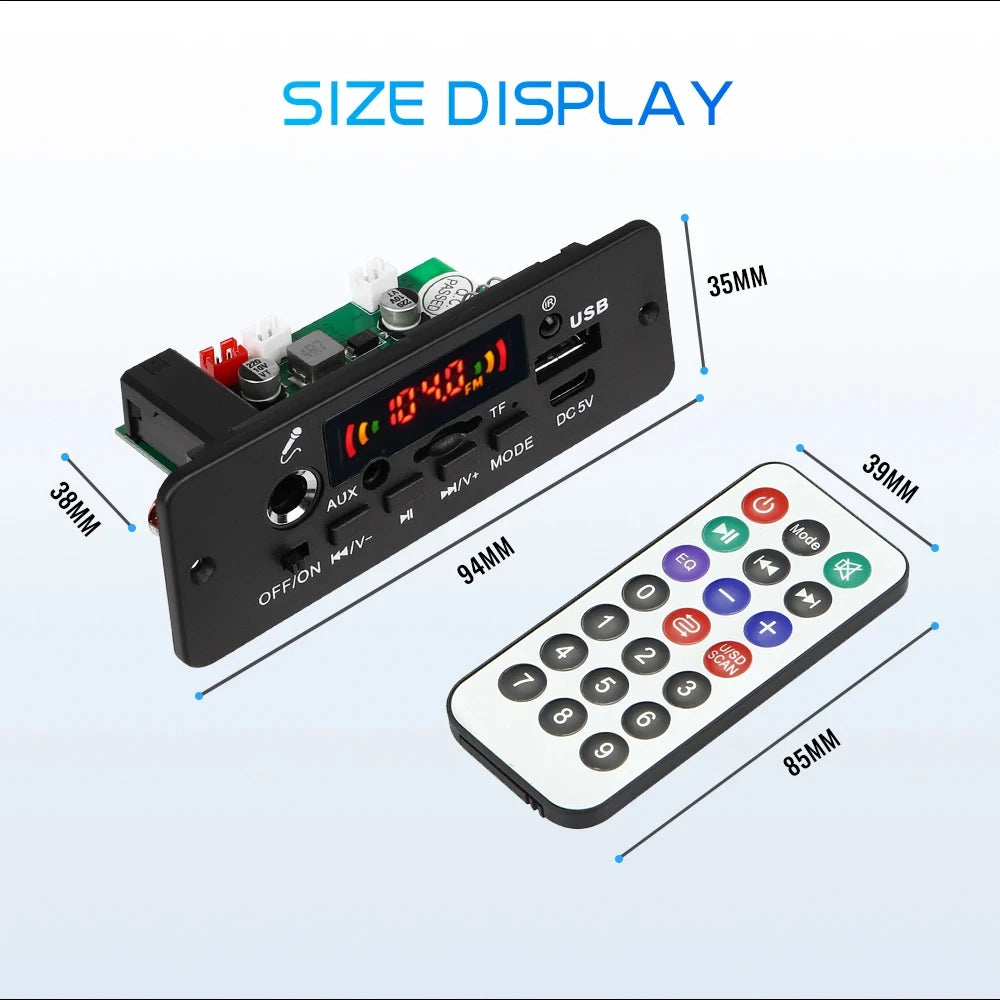

About the structure: panel size: 94 * 35 MM, two corners of the panel and the position of the screw holes, and the depth of the panel is 38 mm.

1. Microphone interface;

2. IR: infrared receiver module;

3. LED: color display, digital screen in red;

4. USB: connect a USB drive (maximum support of 32 GB);

5. POWER: power switch;

6. VOL-: a short press is to select the previous song; a long press is to decrease the volume; double click to switch to the previous folder;

7. AUX: audio input interface;

8. SCAN: briefly press to toggle between pause and play; in FM mode, a short press is for an automatic station;

9. TF card: connect the TF memory card (maximum support of 32 GB);

Images are for reference only.
