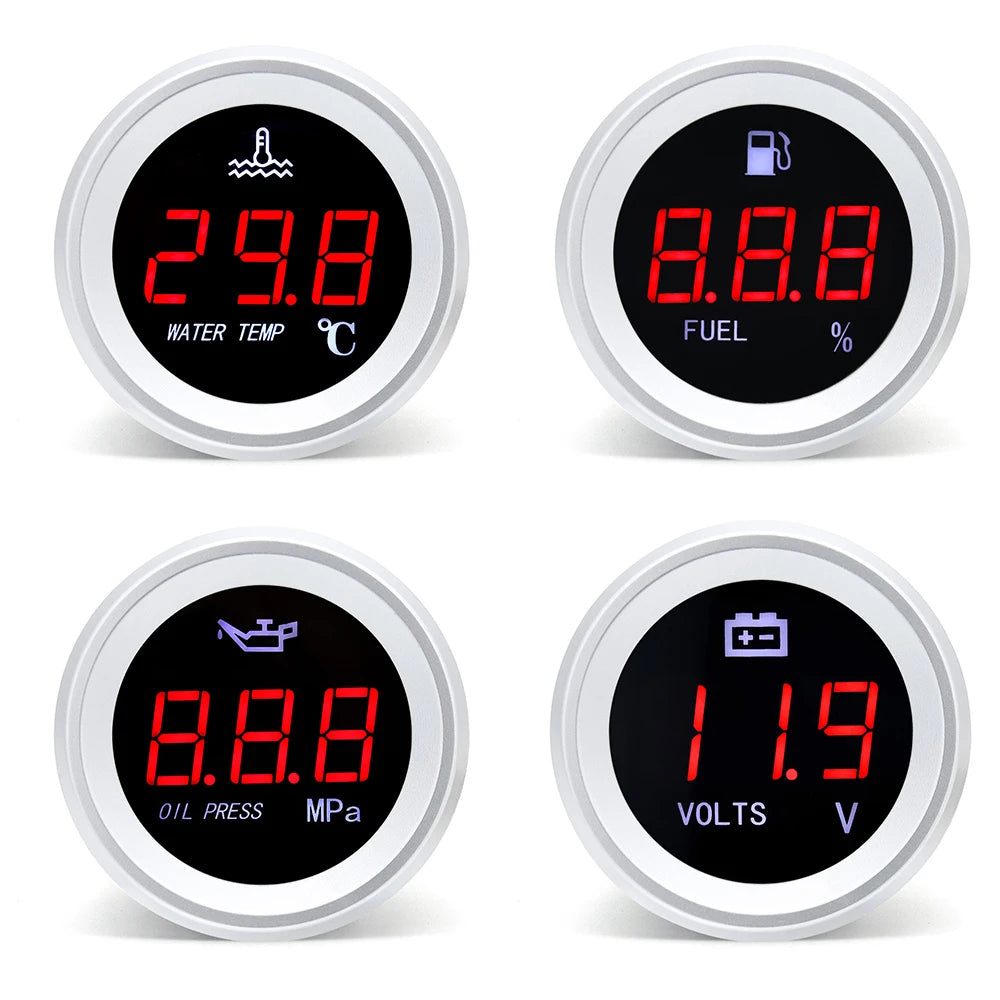

HD 52MM Car Water Temperature Gauge / Oil Level Gauge / Voltmeter Fuel Pressure Meter with 0-1.0 - Automotive LED Light

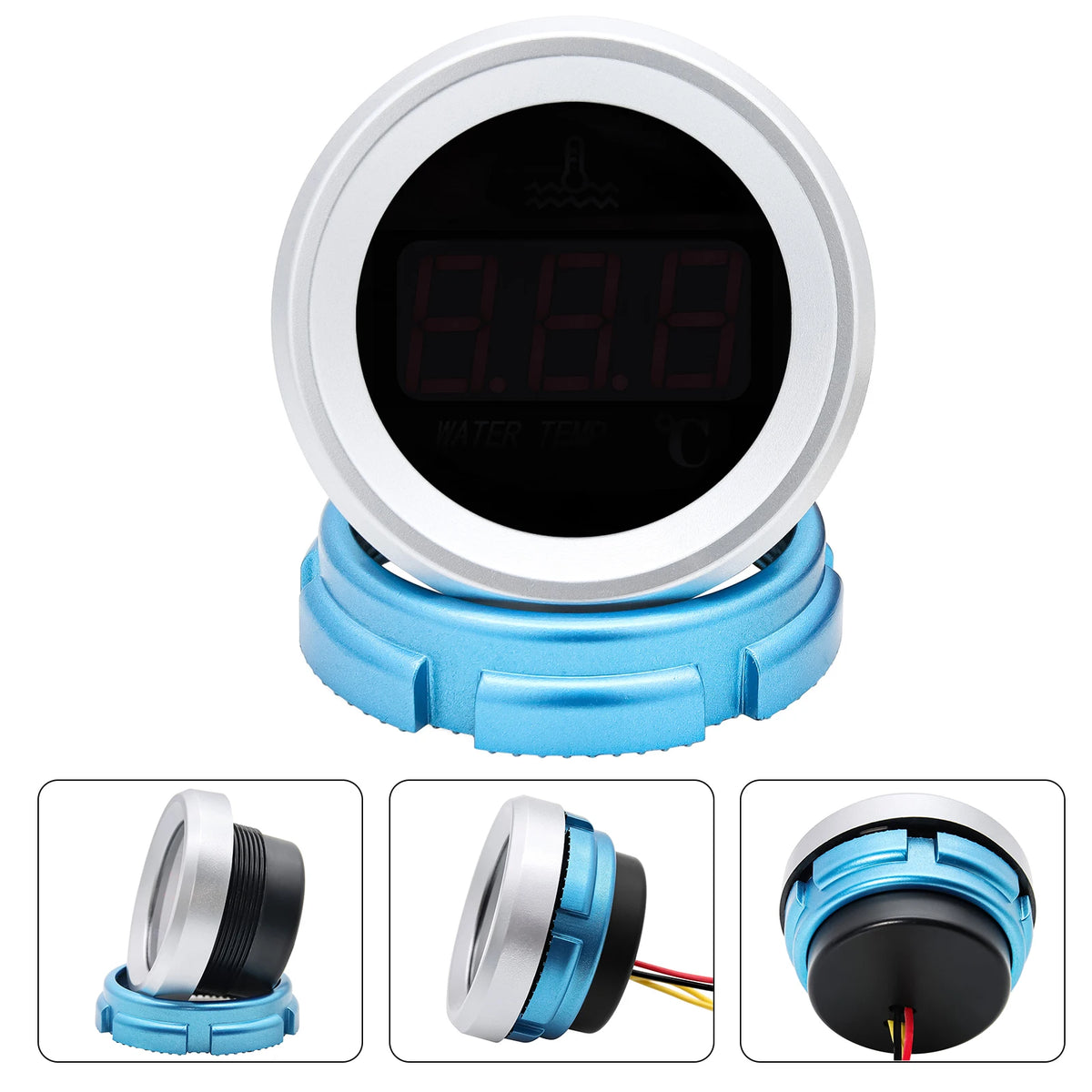

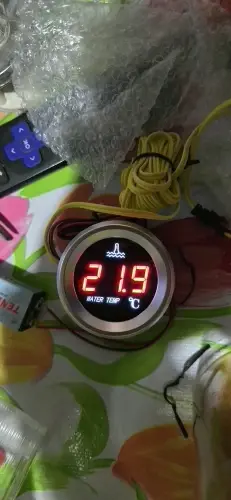

Water Temperature Gauge Specification:

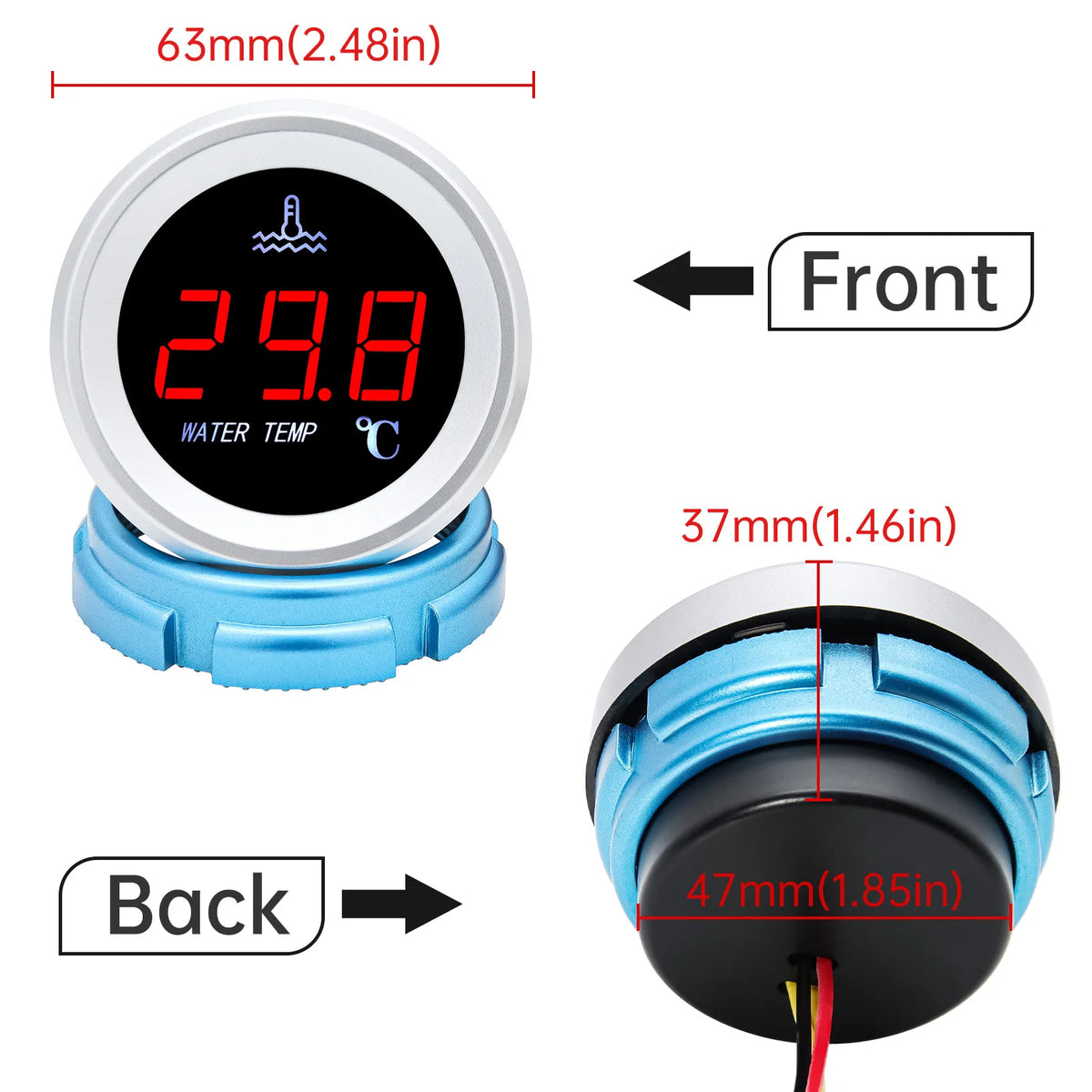

-52mm Water Temperature Gauge

-Working Voltage :9-35V

-Range:0-120℃

-Alarm Temperature :≥96℃

(The Gauge Flash Alarm )

-Water Temp Sensor size :1/8NPT

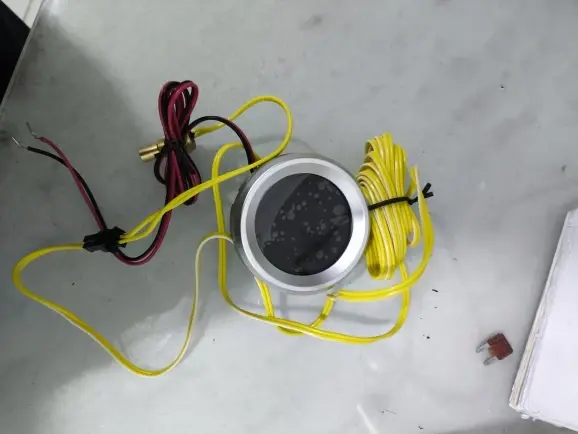

-Connection:

Red Wire-------------Power (+)

Black Wire ----------Power(-)

Package Include :

1 X 52MM Water Temp Gauge

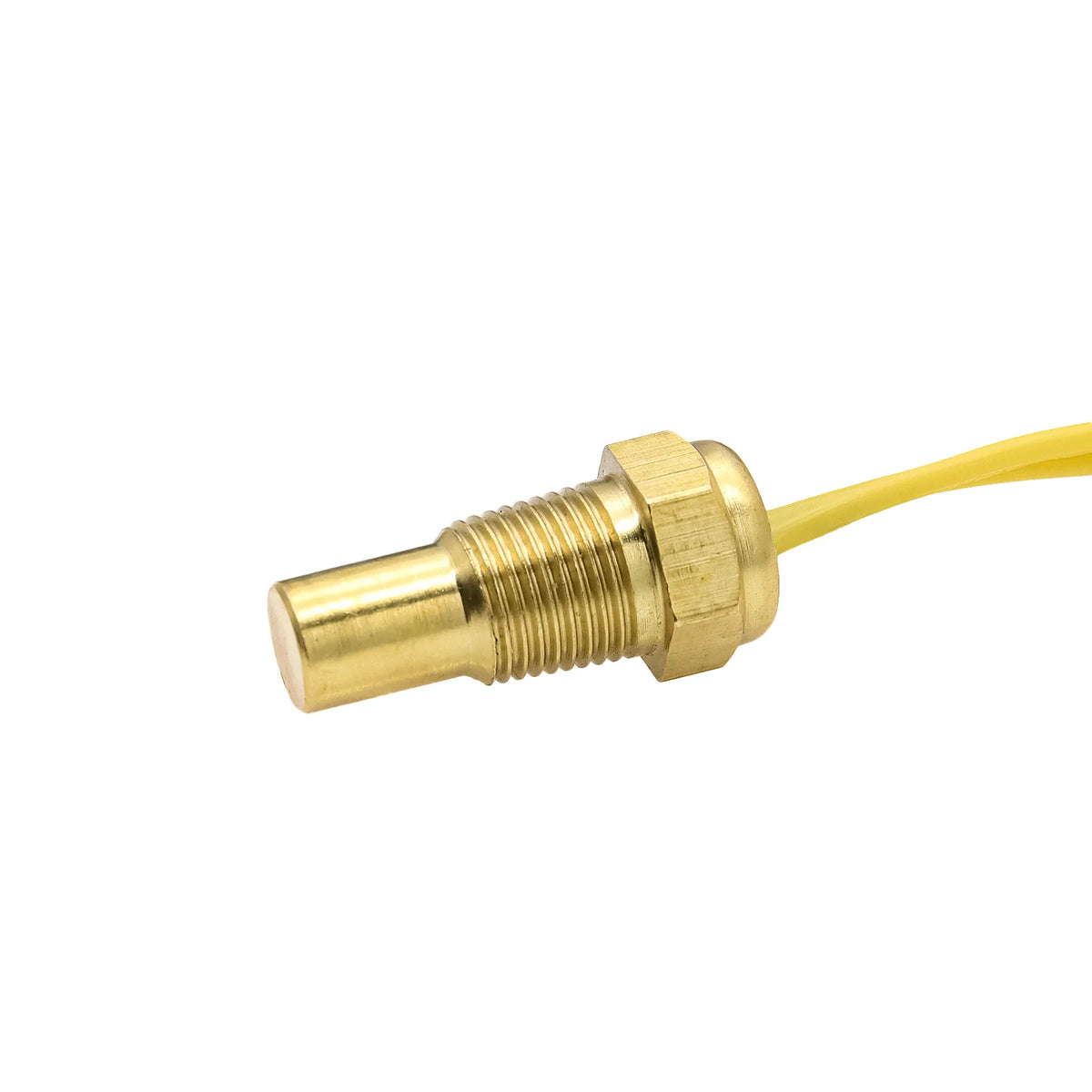

1 X 1/8NPT Water Temp Sensor

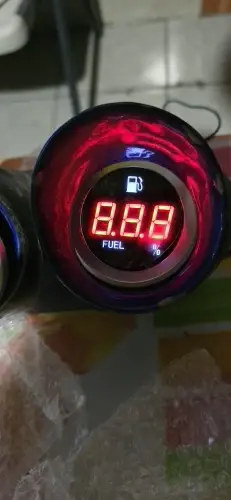

Fuel Level Gauge Specification:

1. Working voltage: 9-35V;

2. Test range: 0-100%;

3. When the Fuel Level is ≤ 10%, the Gauge will flash for alarm;

4. Resistance value of adaptive sensor: 0-190 Ω;

5. The RED wire is connected to the positive pole of the power supply, the BLACK wire is connected to the negative pole of the power supply, and the GREEN wire is connected to the sensor.

Package Include:

1X 52MM Fuel Level Gauge

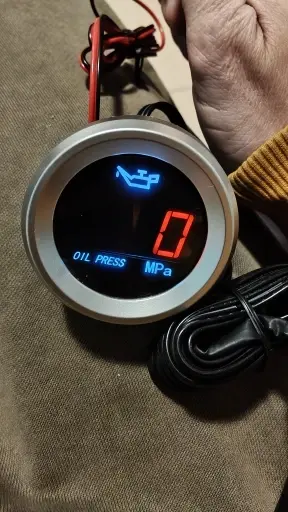

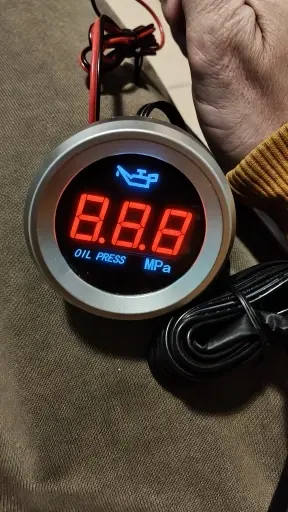

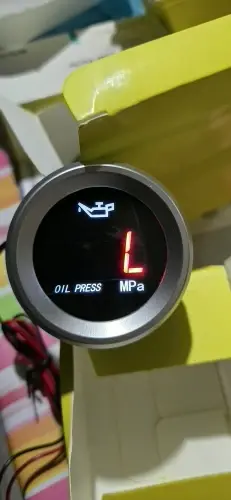

Oil Pressure Gauge Specification:

1. Working voltage: 9-35v;

2. Test range: 0-1.00Mpa;

3. When the Oil Pressure is ≤0.08Mpa,Gauge will flash for alarm .

4.Oil Pressure Sensor :1/8NPT Sensor

5. The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply

Package Include :

1 X 52MM Oil Pressure Gauge

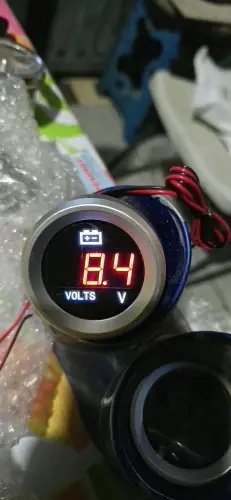

Voltage Specification:

1. Working voltage: 9-35v;
2. Test range: 9-35v;
3. When the voltage value is ≤ 10V or between 14.5 and 21.5v or ≥ 29V, the Gauge will flash for alarm;
4. The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply

Package Include:

1 X 52mm Voltage
